Precision Solutions for Indexing and Rotary Table Workholding #
AUTOGRIP® Pneumatic Rotary Chucks are engineered to meet the demands of industrial environments where indexing tables and rotary tables are essential. These chucks are specifically crafted to integrate seamlessly with indexing plates and can be directly mounted onto indexing tables, streamlining both setup and operation.
Key Features #
- Built-in Cylinder: The integrated cylinder design eliminates the need for a separate rotary cylinder at the rear, simplifying installation and enhancing operational stability.
- Labyrinth Ring Dust-Proof Mechanism: The interior of each chuck features a labyrinth ring, effectively preventing chips and coolant from entering the mechanism. This design helps to protect internal components and maintain long-term reliability.
- Direct Mounting: Designed for straightforward attachment to indexing tables, reducing installation time and potential alignment issues.
Technical Specifications #
- Machine Type: Rotary table
- Chuck Type: Non-Thru-Hole
- Chuck Sizes Available: 6", 8", 10"
- Through Hole: Non-Thru-Hole
- Workpiece Compatibility: Round flange type
- Precision: Engineered for high-precision applications
- Gripping Type: Inner and outer gripping
- Number of Jaws: Three-jaw configuration
Product Highlight #

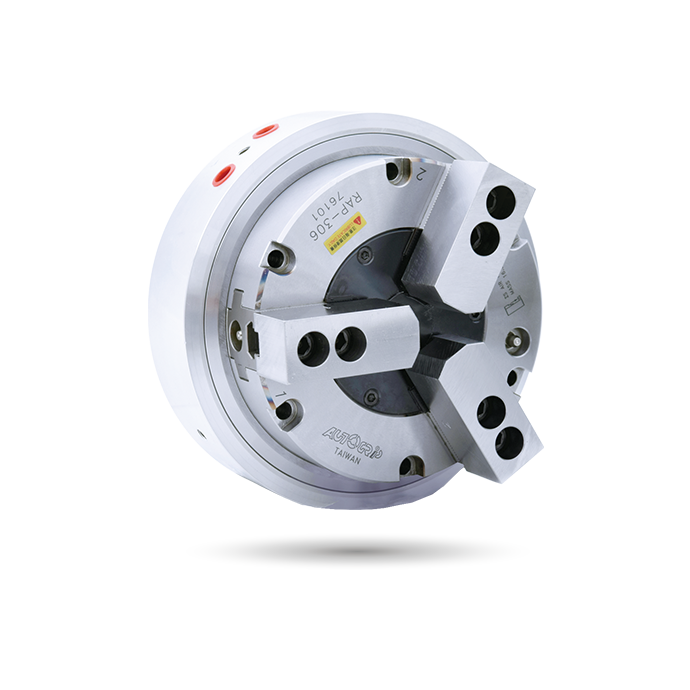

RAP Pneumatic Power ChuckWhy Choose AUTOGRIP® Pneumatic Rotary Chucks? #
With over 35 years of experience, AUTOGRIP® delivers high-precision chucks that support a wide range of machining requirements. Custom solutions and ODM services are available to address unique application needs.
For further information or to discuss your specific requirements, contact us.
